项目名称Project Name |

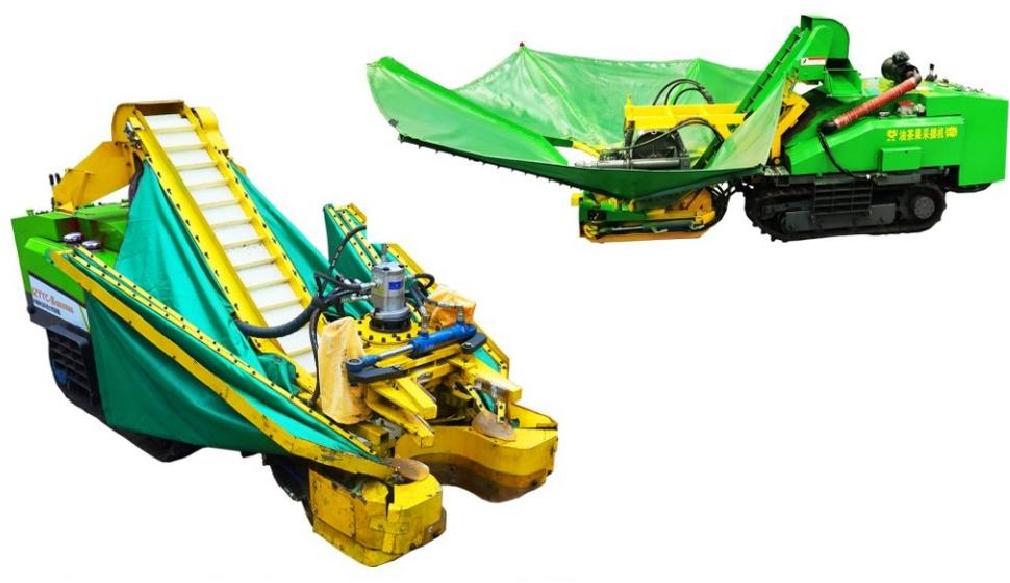

自走环抱式液压采收机Self- moving annular hydraulic
collector |
自走环抱式机械采收机Self- moving circular mechanical
collector |
|
|
型号Model |
4CLY-100 |
4CLJ-100 |
|
|
尺寸Size |
外形尺寸Boundary Dimension (mmxmmxmm) |
2670*900*1305 |
2470*650*1325 |
|
运输尺寸Transportation clearance (mmxmmxmm |
3000*1200*1500 |
2800*800*1500 |
|
|
整机重量Total weight (kg) |
1100kg |
1000kg |
|
|
柴油机 Dieselengine |
型号Model |
洋马3TNV88-BDSA |
洋马3TNV76-KYT |
|
功率/转速Power/Speed kw/rpm |
26.9KW/3000rpm |
17.8KW/2800rpm |
|
|
燃油消耗率Fuel consumption rate |
≤3.8L/h |
≤3.5L/h |
|
|
履带型号规格Track model and specification |
180*72-37 |
150*72-37 |
|
|
轴距Wheel base mm |
970 |
970 |
|
|
轨距Gauge mm |
720 |
500 |
|
|
履带接地长度与轨距之比 Ratio of track ground length to track gauge |
842/720=1.17 |
825/500=1.65 |
|
|
平均接地压力Mean ground pressure kPa |
36.5 |
39.6 |
|
|
最大爬坡角Maximum Permissible Gradient () |
25 |
25 |
|
|
最小离地间隙Minimum ground clearance mm |
120 |
120 |
|
|
作业性能参数 Job performance |
采收效率Recovery efficiency |
2分钟/棵2 minutes per tree |
2分钟/棵2 minutes per tree |
|
采净率Net harvest rate |
83%-95% |
83%-95% |
|
|
parameters损花率Loss rate of flower |
5% |
5% |
|
