项目Project |
单位Unit |
设计值Design Value |
|
称Model name |
/ |

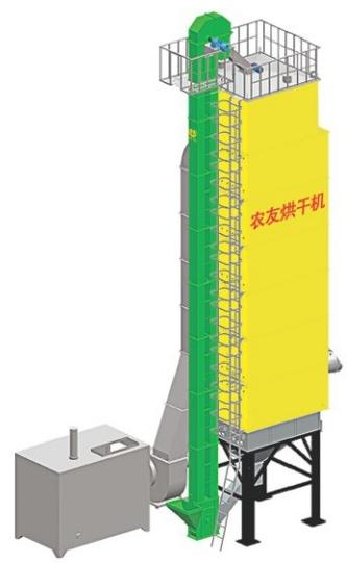

5HL-100连续式谷物干燥机 continuous grain dryer |
|
结构型式Structure type |
|
连续式Continuous type |
|
干燥方式Drying method |
|
间接加热Indirect heating |
|
干燥工艺Drying process |
|
混流Mixed flow |
|
烘干机机体外型号名形尺寸(长×宽×高) Body dimension of dryer (length×width×height) |
mm |
2400×2400×11000 |
|
处理量Handling capacity |
t/d |
≥100 |
|
降水幅度Precipitation range |
|
>3% |
|
批处理量Batch capacity |
|
|
|
降水速率Precipitation rate |
%/h |
|
|
有效容积Effective volume |
m3 |
54 |
|
热风温度范围Hot air temperature range |
℃ |
50-80 |
|
烘干机电机总功率Total motor power of dryer |
kW |
40.7 |
|
热源型式Heat source type |
|
生物质颗粒Biomass particle |
|
提供热源的设备型号名称 Model nameofthe device that provides the heat source |
/ |
5LS-480生物质颗粒热风炉 Biomass particle hot blast stove |
|
热源热功率(输出热量) Heat source thermal power (heat output) |
kJ/h (kcal/h) |
1884060(450000) |
